Standards:

Applications:

The application area included air filter test criteria, the engine inlet air filter and the automatic testing of the flat plate filter medium.

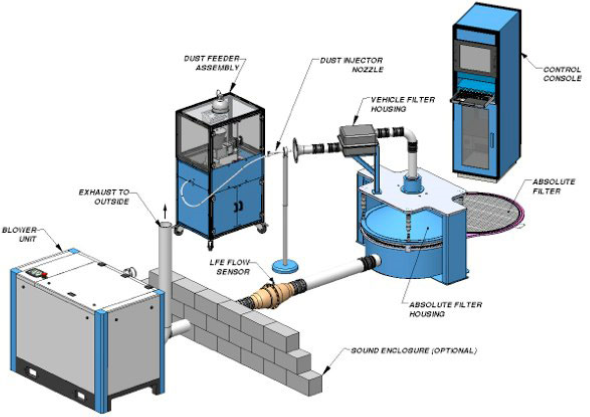

A typical instrument installation is to install the entire instrument in a separate layer. The multi-layer installation method can install the blower unit in the upper or lower layer, which can save the laboratory space.


Product Information:

series testing stand, used gravity test method, is a fully automatic air filter testing system, which can be use for product development and quality supervision.
Modular design allows the instrument to fit with your equipment, and optional accessories allow the instrument to meet your specific needs.

Range of Flow:
Model 5011-1000100-1000 SCFM50-1000 std m³/hr
Model 5011-2000100-2000 SCFM170-3400 std m³/hr
Two LFE traffic sensors can be used to extend the flow range

Flow Measurement:
Single or multiple laminar elements with high precision pressure sensors （LFE）
Accuracy of measurement：±0.86%

Pressure:
Dual range high precision pressure differential sensors
Pressure Accuracy：±0.15%
