Standards:

Applications:

It’s great significant for AFC-133 filter test bench to optimize and develop filter materials,    ensure quality assurance of the production process. Dust capacity and filtration efficiency are the most interesting properties of filter material properties, depending on the pressure difference between the upstream and downstream of the filter and the test particle size. In order to test these properties, the AFC-133 filter test bench tests the filter materials according to international standards. The entire test bench is compact and lightweight, and only requires additional single-phase power and compressed air during the test. It is suitable for the laboratory.

Product Information:

System Integration

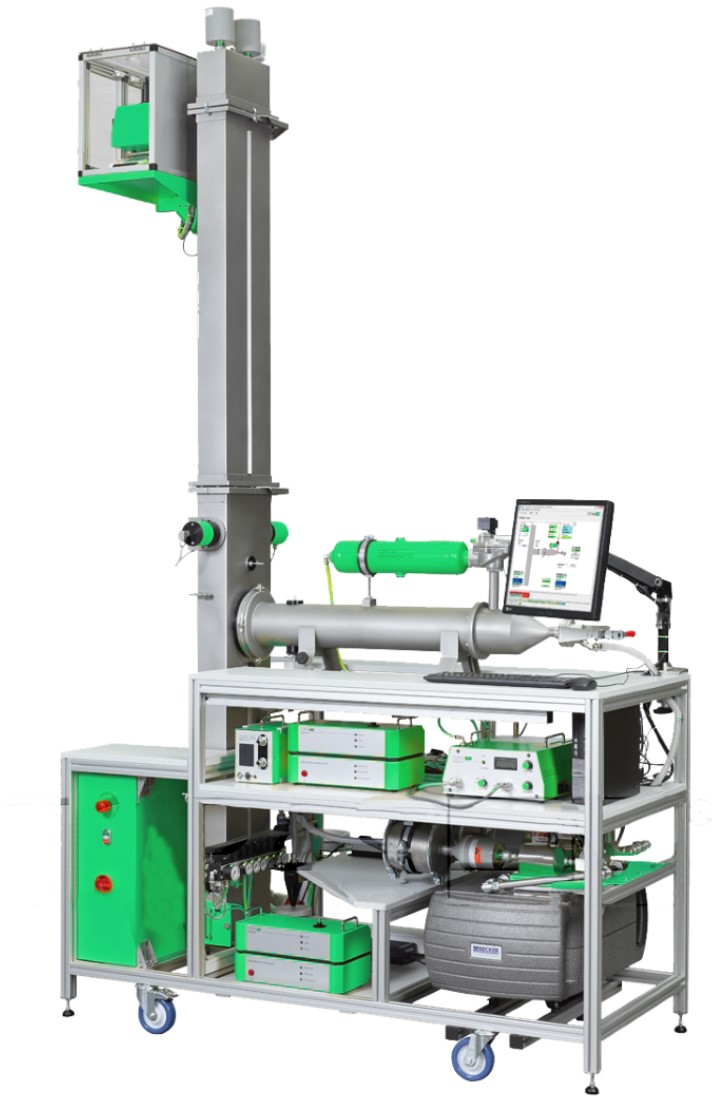

AFC-133 filter materials test bench mainly test channel (including filter fixture), flow control unit, dust diffuser, optical particle counter and other components and control and data acquisition software. Horizontal device test dust pipe is in line with VDI-3926 with diameter 100mm of 1.4301 stainless steel tube. The flow control unit has designed a mass flow controller. The optical particle counter with switching valve (switching upstream and downstream aerosol samples) can measure the grading filtration efficiency of 0.2 ~ 40μm. At the same time, the particle counter can be purged by purging the air that up and down the sample. Moreover,  Time can be selected by software.
The high efficiency filter installed at the end of the air purifying channel is used to measure the downstream aerosol concentration of filter in test state. The weighting method is the way to get filtration efficiency by measuring the weight of the backup filter and the filter under test. The filter clamp and the backup filter are free to be placed and removed from the test channel, making it easy to test and clean.
Control and data acquisition software PAFWin is the professional software based on filter materials and filter test and development. This software controls the operation of the test bench and test data records, which can be easily controlled and operated in Windows3.x / 95 / NT operation System. It not only can automatically conduct an experimental test according to the issued standard, but also can prompt the maintenance needs of manual control, calibration experiments and research and other information.

Technical Parameters：
