6-station Efi Fuel Filter Sealing Leakage Tester

BACK
6-station Efi Fuel Filter Sealing Leakage Tester

info@standard-groups.com Quote

Share

Standards:

Applications:

professionally designed for testing the airtightness of Efi fuel filter

Product Information:

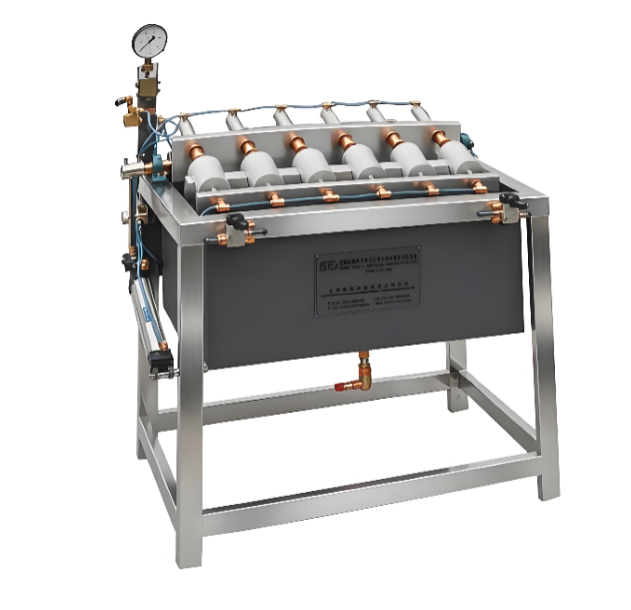

This tester is professionally designed for testing the airtightness of Efi fuel filter.

Features
 · The instrument has 6 working stations and an independent pneumatic control system for automatic clamping, air charging, retreat and other function, meeting the requirements of batch testing Efi fuel filters.
· The airtightness of fuel filters with different diameter and height can be tested by changing the layer board and adjusting the inlet positioning board.

Technical Parameters


Item Parameters
Testing range Filter diameter: Φ40mm~Φ100mm
Filter height 50mm~200mm
Working air pressure 0.8MPa
Pressure gauge accuracy 1.5 grade
Test speed 6 pieces/min~12 pieces/min
Dimension 940mmX700X1200mm

Weight 80kg
