Static Honestmeter

BACK

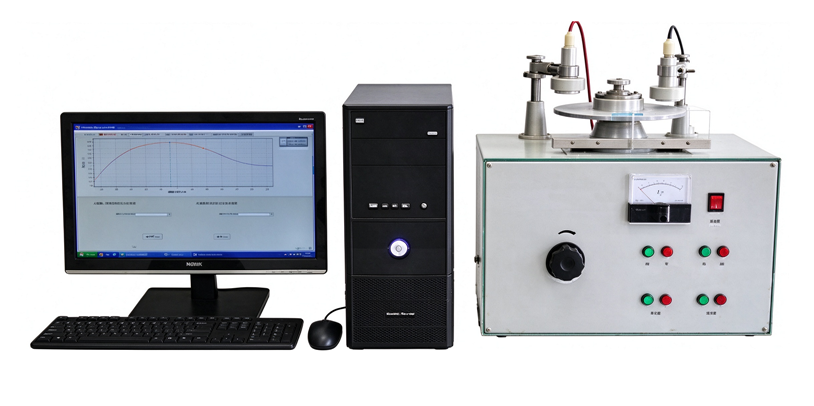

Static Honestmeter

info@standard-groups.com Quote

Share

Standards:

GB/T 12703.1 FZ/T 01042 JIS L1094

Applications:

Static honest meter is professional designed to determine the attenuation of static electricity, corona discharge time, static voltage attenuation half-life, static decay curve and other electric property of fiber, yarn, fabric, textile or plate materials.

Product Information:

Static honest meter is professional designed to determine the attenuation of static electricity, corona discharge time, static voltage attenuation half-life, static decay curve and other electric property of fiber, yarn, fabric, textile or plate materials. It is suitable for measuring the diffusibility of static in the testing samples.


Standards:
GB/T 12703.1  FZ/T 01042  JIS L1094

Feature:
Separation design of tester and controller is easy and safe to operate.
Digital voltmeter will display the testing results.
Automatically stop for high voltage and motor.
Optional data analysis software can provide more detailed information and results.

Technical Parameters：
Items Parameters
The measuring range of electrostatic voltage  0 ~ 10kV
The half-life time range  0 ~ 99.99 h
Rotation speed 1500 RPM
Discharge time 0 ~ 99.99 s (test is scheduled (30 + 0.1) seconds)
Discharge distance between needle electrode and specimen 20mm
Measurement distance between test probe and specimen 15mm
The static voltage calibration was performed before the instrument was issued
Check before use. The cylinder must be filled with oil (transformer oil)
Sample size 60mm x 80mm
Power 220V 50Hz 1.5kw
