What is the difference between tear strength and tensile strength test?

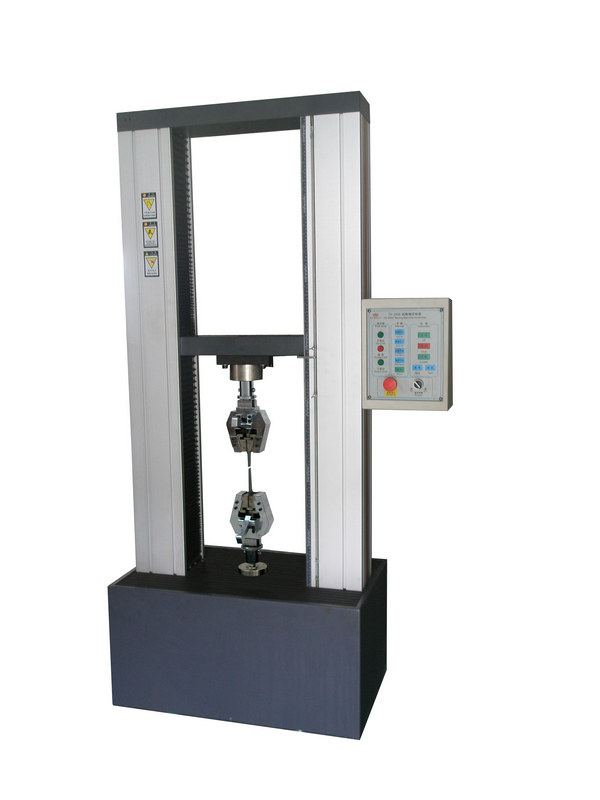

The tensile strength test measures the maximum force a material can withstand when subjected to tension. This test is usually done using a universal material testing machine, where the material is clamped to the machine and the tension applied by the machine is gradually increased until the material breaks. During the tensile process, the tester records the force applied to the material as well as the elongation of the material and calculates the tensile strength of the material from this data.

The tensile strength test is commonly used to evaluate the properties of materials in terms of strength, stiffness, toughness and reliability. This test method can be used to measure the tensile strength of a variety of materials, such as metals, plastics, rubber, textiles, composites, and so on.





The tear strength test measures the ability of a material to resist tearing. This test method usually uses a universal material testing machine where a pre-prepared sample is clamped between two fixtures. The testing machine then moves one fixture downward at a specific speed, tearing the sample until it splits. During the test, the tester records the force applied to the sample and calculates the tear strength of the material from this data.

The tear strength test is commonly used to evaluate the properties of materials such as paper, textiles, plastic films, tapes, etc. This test method is usually more suited to assessing the toughness and breaking pattern of a material, and can also be used as a quality control tool to ensure that the materials produced comply with relevant standards and specifications.





1. test object:
tear strength test mainly focuses on the performance of materials under tearing stress, while tensile strength test mainly focuses on the performance of materials under tensile stress.

2. Test Method:
The tear strength test uses a beam or perforated specimen to tear the specimen by applying a force and expanding the crack, while the tensile strength test uses the opposite tensile force applied to the ends of the specimen until the specimen ruptures.

3. evaluation parameters:
the tear strength test evaluates the tear resistance and toughness of the material, while the tensile strength test evaluates the elastic and plastic properties of the material.



It should be noted that specific test criteria and methods may vary depending on the type of material, industry standard or application requirements. The appropriate standards or specifications should be followed when performing the tests.
