Extreme Oxygen Index Tester Operation



　　1.Have a strong after-sales service team;



　　2.Able to handle various issues in a timely and fast manner,relieving customers of any worries they may have;



　　3.Complete spare parts to solve the problem of long lead times when ordering spare parts;



　　4.Keep up with industry standards updates and provide textile testing instruments that meet the new standards in a timely manner.

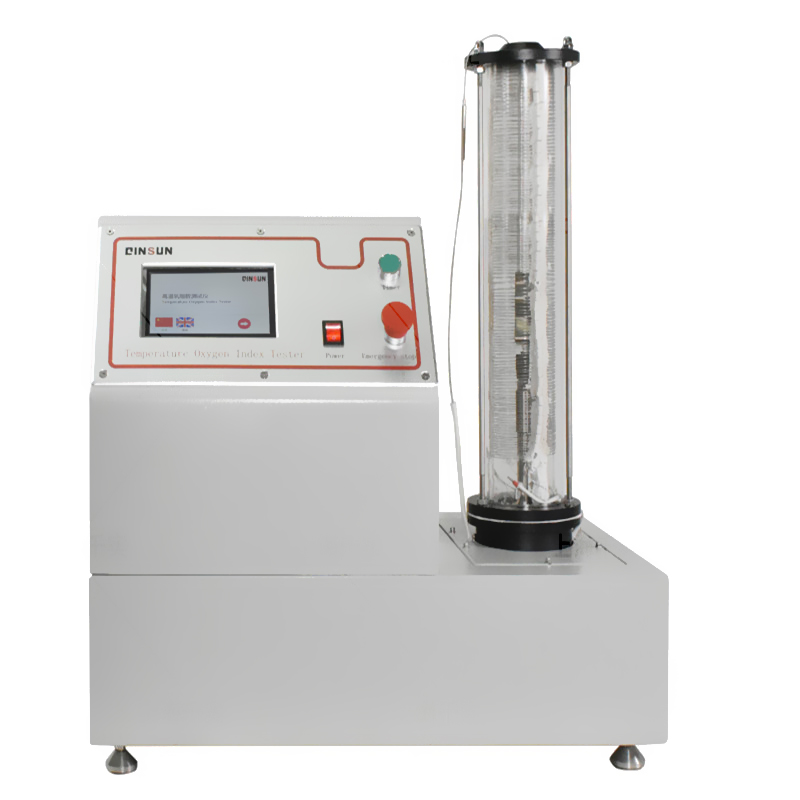

　　F101A Extreme Oxygen Index Tester is used to measure the combustion performance of various textiles,including woven,knitted,non-woven fabrics,etc.It can also be used to measure the combustion performance of plastics,rubber,paper,etc.



　　Applicable standards:



　　GB/T5454-1997"Determination of combustion performance of textile batches-Determination of oxygen index"



　　GB/T2406.2-2009"Plastics-Determination of combustion behavior using oxygen index index method-Part 2:Room temperature test"



　　ISO4589-2 Plastics-Determination of combustion behavior using oxygen index method-Part 2:Room temperature test



　　ASTM D2863 Measurement Method for Low Oxygen Concentration during Candle Burning of Plastics(Oxygen Index)



　　BS2782-1Method141 Plastics Test Methods Part 1:Thermal Properties Method 141 Determination of Combustion Oxygen Index



　　IEC1144:Test method for determining the oxygen index of insulating liquids



　　NFT51-071 Plastics-Evaluation of combustion performance oxygen index



　　HSK7201 Determination of combustion oxygen index



　　Operation:



　　1.Firstly,prepare the accessories and test samples;



　　2.Remove the sample fixture;



　　3.Fix the test sample in the fixture;



　　4.Connect and fix the fixture to the bottom fixture;



　　5.Place heat-resistant glass over the fixture;



　　6.Cover the aluminum box on the top of the glass bottle;



　　7.Turn on the instrument switch and enter the LCD screen operation interface;



　　8.Conduct oxygen and nitrogen cleaning;



　　9.Set the oxygen concentration value;



　　10.Use an igniter to ignite the sample inside the heat-resistant glass bottle;



　　11.Start timing;



　　12.Stop timing when the sample burns to a certain mark on the scale;



　　13.Remove heat-resistant glass and fixtures;



　　14.End the test and turn off the instrument.
