45° Combustion Tester Operation



　　1.Have a strong after-sales service team;



　　2.Able to handle various issues in a timely and fast manner,relieving customers of any worries they may have;



　　3.Complete spare parts to solve the problem of long lead times when ordering spare parts;



　　4.Keep up with industry standards updates and provide textile testing instruments that meet the new standards in a timely manner.

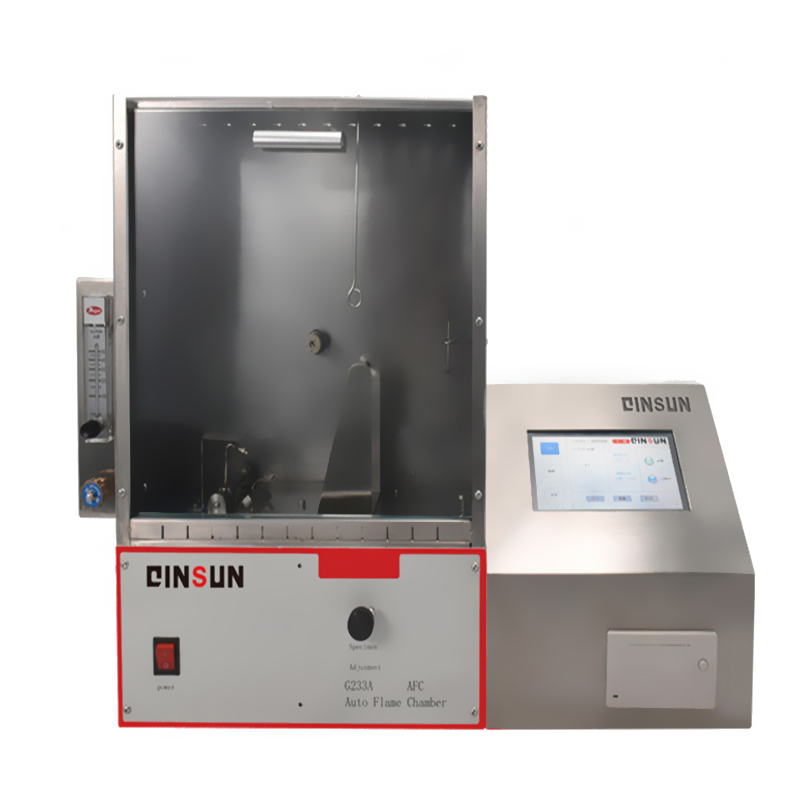

　　G233A 45°Combustion Tester is mainly used to test the flame retardant performance of fabrics such as clothing textiles,toy fabrics,and soft furniture fabrics.



　　Compliant with standards:



　　CFR 1610,ASTM D1230,NFPA 702,CA TB117,BIFMA,GB/T14644



　　Operation steps:



　　Firstly,prepare the accessories and test samples;



　　2.Place the test sample into the fixture and secure it;



　　3.Place the fixture containing the sample into the test box;



　　4.Hook one end of the cotton thread with a weight,and then connect it through the wire loop,fixture hook,fixed coil,and other positions;



　　5.Adjust the position of the sample clamp;



　　6.Use an igniter to ignite the burner;



　　7.Turn on the instrument switch and enter the LCD screen operation interface;



　　8.Set ignition time;



　　9.Start the experiment;



　　10.The igniter automatically ignites and the test sample begins to burn;



　　11.After five seconds,the timer will automatically start;



　　12.When the cotton thread is burned off,the weight automatically falls down,and the timing ends to determine the burning rate;



　　13.Click to print;



　　14.After the test is completed,remove the sample fixture and turn off the instrument;



　　15.After the detection material catches fire;



　　16.The flame propagation time in the 45 degree direction,the intensity and speed of material combustion,and the classification of product flammability to evaluate the combustion performance of the product.
