Shoe Bending Tester Operation



　　1.Have a strong after-sales service team;



　　2.Able to handle various issues in a timely and fast manner,relieving customers of any worries they may have;



　　3.Complete spare parts to solve the problem of long lead times when ordering spare parts;



　　4.Keep up with industry standards updates and provide textile testing instruments that meet the new standards in a timely manner.

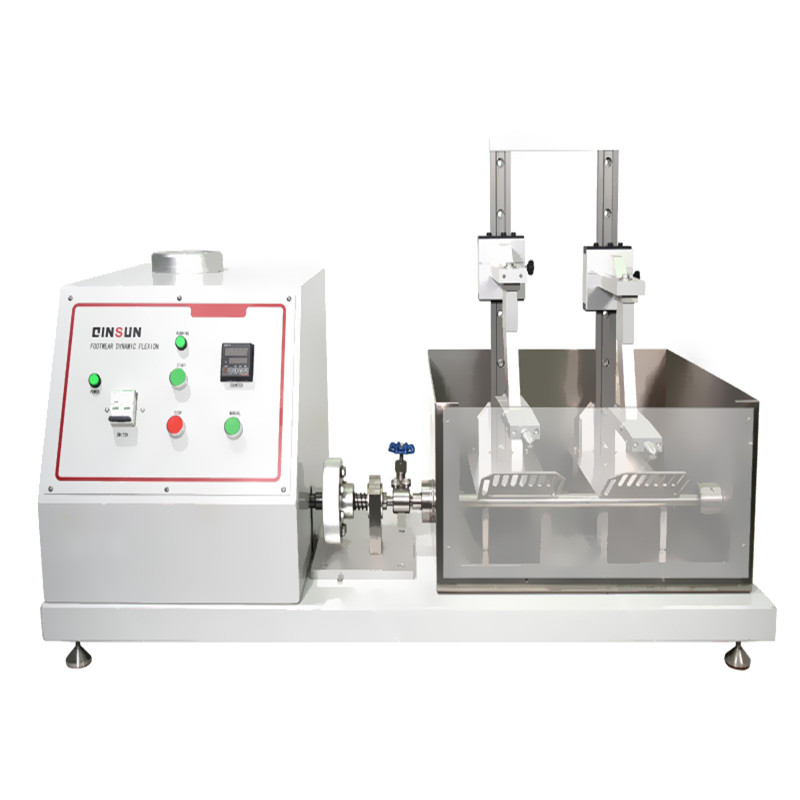

　　G184 Shoe Bending Tester is mainly used to test the room temperature bending resistance of finished shoes and soles/pieces.It is an instrument for testing the bending resistance and resistance of various textile materials.



　　Compliant with standards:



　　GB/T3903.1-1994,Satra TM92&77 and other standards



　　Testing process:



　　Install the finished shoe or sole on a fixture,conduct a bending test at a certain angle and frequency,measure the cracks(openings)and opening length of the sole and collar after a certain number of bending cycles,and observe the changes in the upper of the shoe.



　　Main parameters:



　　A.Fixture:2 sets;



　　B.Bending angle:50°±1°(0°~5°)adjustable;



　　C.Test speed:230±10r/min;



　　D.Motor:3-phase,AC 2KW;



　　E.Volume(approximately):Host 78×sixty-eight×125cm.



　　Operation steps:



　　1.Firstly,prepare the accessories and test samples;



　　2.Install the prepared sample into the fixture;



　　3.Turn on the instrument switch;



　　4.Set the counter value;



　　5.Start operation;



　　6.The instrument begins to perform bending tests on the sole of the sample shoe;



　　7.When the set value is reached,the instrument automatically stops;



　　8.Remove the sample;



　　9.Turn off the instrument;



　　10.At the end of the experiment,take the sample for analysis and comparison to evaluate the overall bending resistance of the shoes.
