G376 Fabric Shading Tester Operation
2024/01/16
Share:

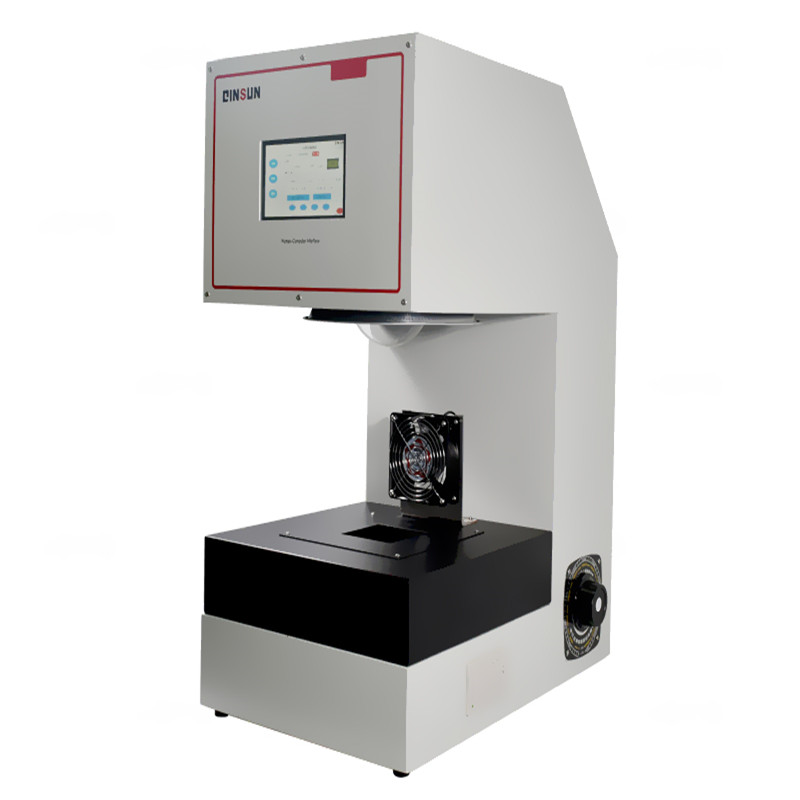

G376 Fabric Shading Tester is used to measure the light transmittance of a fabric under a certain amount of strong light irradiation through the sample,and to calculate the shading rate by comparing it with the illuminance without the sample.
Compliant with standards:
FZ/T 62025-2015,JIS L1055 and other standards
Main parameters:
1.Light source:100V,500W;
2.Illuminometer:0.01 lx~199 000 lx(experimental range 0.01 lx~100 000 lx);
3.Illumination meter accuracy±2%;
4.Power supply:AC220V,50Hz,80W;
5.Weight:30kg.
Usually,after adjusting the brightness of the light source to 10000(1X),installing the sample,measuring the illuminance transmitted by the sample,and calculating the shading rate(%)according to the following formula
Shading rate(%)=(1-I1/I0)×one hundred
I1:Illumination after installing the sample(lx)
I0:Illuminance without installed specimen(lx)
Operation:
Firstly,prepare the accessories and test samples;
2.Set the lighting intensity and click the light on button;
3.Adjust the light source intensity on the side of the machine to approach the lighting setting value;
4.Place the test sample under the light source;
5.Click on the end of the experiment to obtain the transmittance and shading values;
6.Click the save button to view the data;
7.Print out the paper and check the values;
8.Turn off the lights and end the test.
