G401 Adhesive Buckle Fatigue Tester Operation

2024/01/16

Share:　

Share

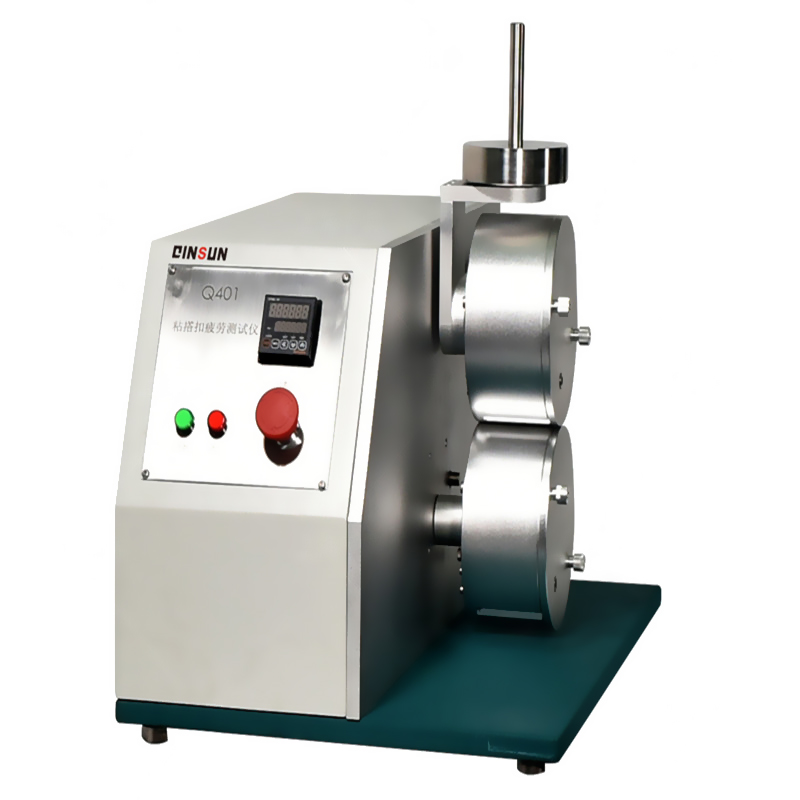

　　G401 Adhesive Buckle Fatigue Tester is suitable for testing the adhesive ability of adhesive buckles(tapes)after repeated peeling and bonding actions,and evaluating whether they meet standard requirements.

　　Applicable standards:

　　DIN 3415,GB/T 3903.20,GB/T 3903.21,GB/T 23315,ISO 22777,ISO 22776,SATRA PM123

　　Technical parameters:

　　1.Roller diameter:Upper wheelφ162.5mm,lower wheelφ160mm;

　　2.Roller width:70mm;

　　3.Rolling speed:60rpm/min;

　　4.Reversal time:30 seconds for reversal;

　　5.Test load:5kg;

　　6.Fixture groove:width 4mm,length 55±2mm;

　　7.Horsepower:AC1/8HP dual frequency motor;

　　8.Counter:LCD display,0-999999.


　　Operation:

　　1.Firstly,prepare the weights and test samples;

　　2.Fix the Velcro strap on the surface of the roller;

　　3.Fit the two rollers together;

　　4.Add weights;

　　5.Set the timer;

　　6.The roller rolls and the adhesive buckle continuously adheres and peels off;

　　7.The timer ends and the roller stops working.
