G501 Leather Flexibility Tester Operation

2024/01/16

Share:　

Share

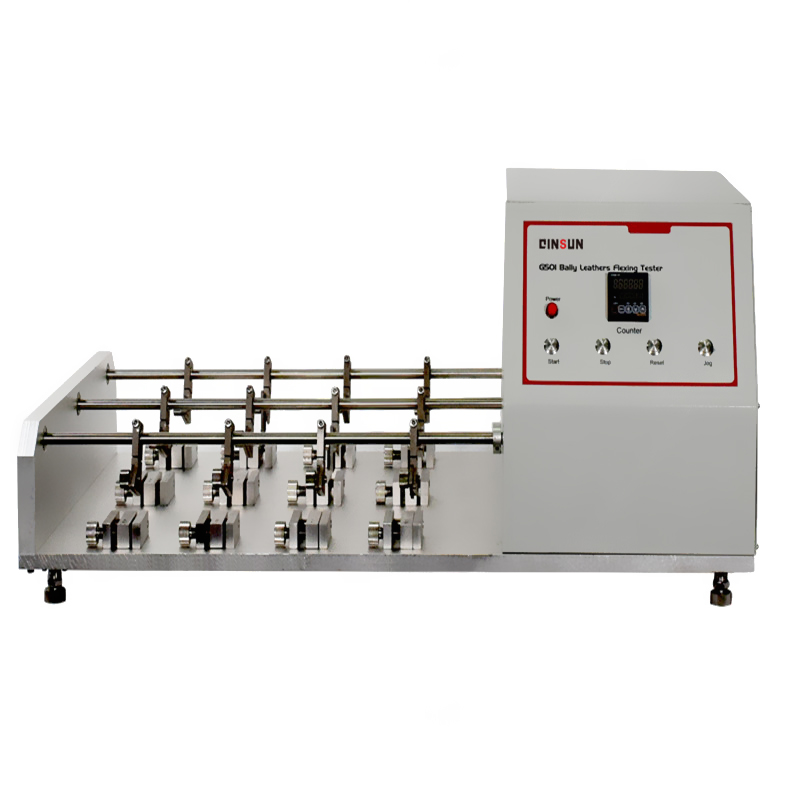

　　G501 Leather Flexibility Tester is used for testing the flexural resistance of leather,synthetic leather,coated fabrics,such as shoe uppers,clothing,bags and handbags,cars,furniture,etc.

　　Technical specifications:

　　A.Testing station:12 groups;

　　B.Test frequency:100±5 times/minute;

　　C.Bending angle:22.5°;

　　D.LCD counter:0-999999;

　　E.Clamping surface material:Copper stainless steel combination,good friction force;

　　H.External dimensions:630×four hundred and fifty×400mm;

　　I.AC 220V,50HZ,220W.

　　Operation:

　　1.Firstly,prepare the weights and test samples;

　　2.Fold a 70 by 45mm fabric sample;

　　3.Install the sample leather onto the fixture;

　　4.Set a timer;

　　5.The fixture starts working;

　　6.After a certain number of tests,take the sample and evaluate the bending performance of the sample based on the tendency of cracking formed in the creases.
