T101 Leather Seam Fatigue Tester Operation
2024/01/23
Share:

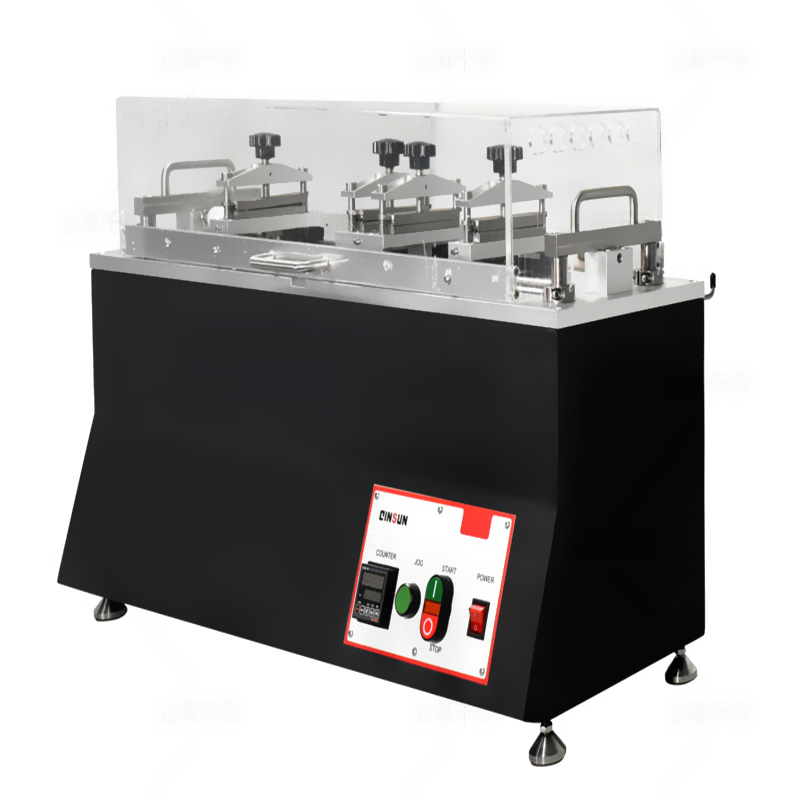

T101 Leather Seam Fatigue Tester is used to evaluate the seam strength of materials used on the surface of car seats.It is a fatigue testing device used to evaluate the seam of car seats caused by external forces such as vibration during driving.
Applicable standards:
JASOM403,GMW3405,ASTM D4033,GB/T4043-2010,GM standard,Ford standard,Honda standard,Mazda standard,Nissan standard
Operation:
Firstly,prepare the accessories and test samples;
2.Open the transparent safety door;
3.Set the distance of the testing fixture according to the scale on the height scale;
4.Place the test sample in a fixture;
5.Use a height ruler to set the fixture distance at another workstation;
6.Install the sample;
7.Remove the height gauge;
8.Close the transparent safety door;
9.Set the number of test cycles and start the experiment;
10.The reducer drives the middle gripper to perform reciprocating motion;
11.When the set number of test cycles is reached,the test stops;
12.Open the transparent safety door;
13.Remove the test sample;
14.Determine the fatigue resistance of material joints by measuring the changes in the seam opening at the joints;
15.At the end of the experiment,turn off the instrument,remove the sample for analysis and comparison,and evaluate its joint fatigue performance.
