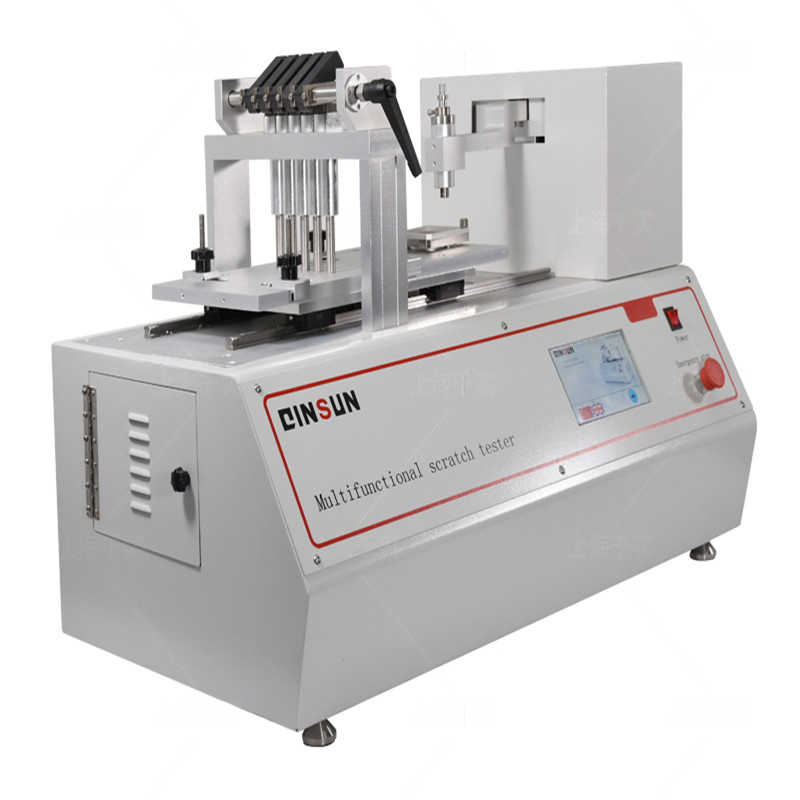

T109 Multifunctional Scratch Tester Operation
2024/01/25
T109 Multifunctional Scratch Tester integrates two common testing methods in the automotive industry,namely the hundred grid method and the five finger method,to test the scratch resistance of various automotive interior and exterior materials(plastics,rubber,leather,fabrics,coated materials,uncoated materials,and other composite materials,paints,inks,soft metals,etc.).
Compliant with standards:
PV3952,PV3974,GMW 14688,GMW 14698-A,Ford BN 108-13,General Motors GMN 3943,Danmler ChryslerLP-463DD-18-01,GB2918,GB6151,GB8424.3,BMW GS 97034,STD1024-3113
![](/en/uploadfile/2024/0125/20240125051349943.jpg)
![](/en/uploadfile/2024/0125/20240125051349943.jpg)
Operation:
Firstly,prepare the accessories and test samples;
The first testing method:Five Finger Scratching Method
Load the weight onto the top of the shaft rod;
Install the scraping finger at the bottom of the shaft;
Fix the test sample on the testing platform and secure it;
Lower the connecting rod to allow the scraping head to come into contact with the specimen;
Set parameters on the display screen;
Conduct friction testing between the scratch head and the specimen;
The second testing method:cross scraping method
Install weights and scraping heads;
Mount the test sample;
Set parameters on the display screen;
Conduct friction testing between the scratch head and the specimen;
After the experiment,analyze and compare the samples to evaluate the surface scratch and durability of the material.
