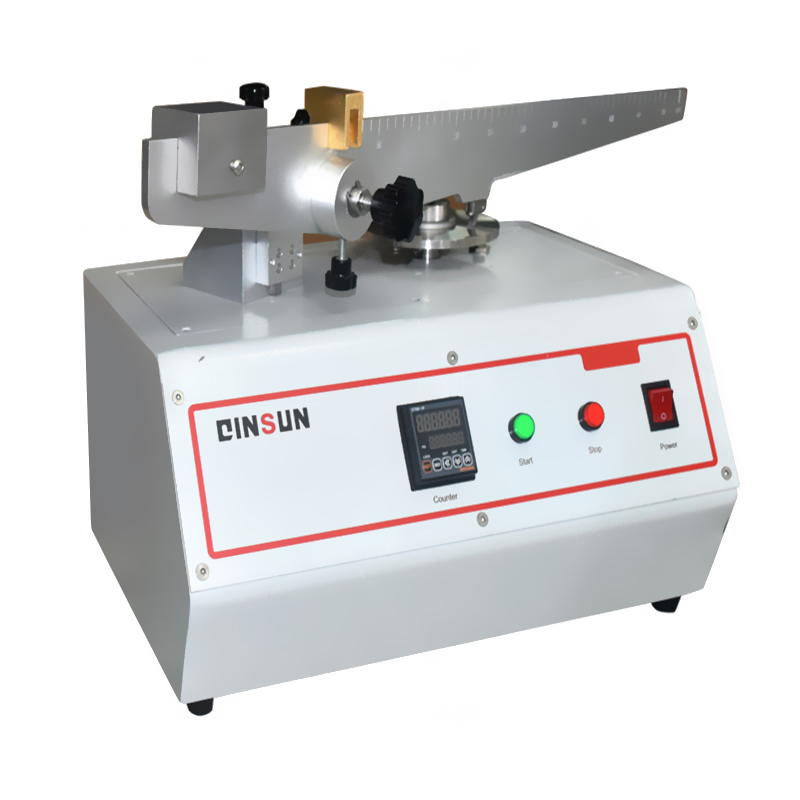

T111 Scratch Sesistance Tester For Artificial Boards Operation
2024/01/25
T111 Scratch Sesistance Tester For Artificial Boards is used to evaluate the shear,scratch,planing,scraping,and carving properties of materials.Its application areas include:rigid organic materials,plastics,artificial boards,glass,and so on.
Applicable standards:
GB/T 17657-1999,ISO 4586-2,JIS K6902,Federal series standards Terrazzo 90322-9E-1,UNI 9428,AS/NZS AS2924.2,ASTM C217,CEN series standards,DIN 53 799,DIN 68 861-4
![](/en/uploadfile/2024/0125/20240125052812666.jpg)
![](/en/uploadfile/2024/0125/20240125052812666.jpg)
Operation:
1.Firstly,prepare the accessories and test samples;
2.Adjust the scale to the appropriate height based on the thickness of the sample;
3.Install the test sample on the turntable and fix it;
4.Move the weights to a certain position according to the testing needs;
5.Start the instrument;
6.Set the number of rotations and start;
7.The scraping head continuously rubs against the sample;
8.Automatically stop when reaching the set value and remove the sample;
9.After the experiment is completed,turn off the instrument and evaluate the material's scratch resistance performance by analyzing and comparing the sample results.
