Automotive interior material atomization tester main parameters



　　Structural composition:

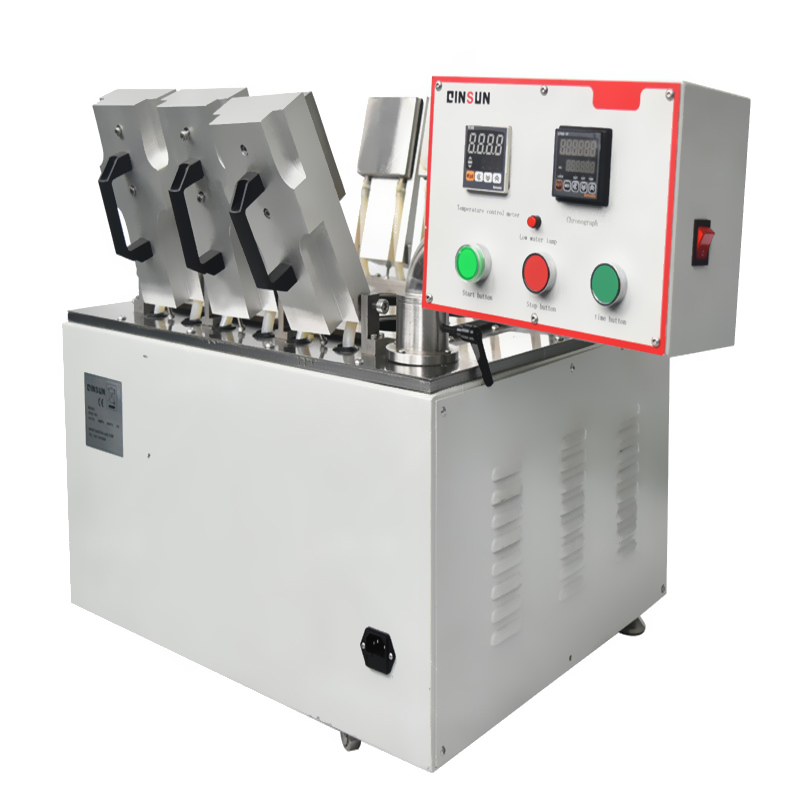

　　The automotive interior atomization tester/atomization tester mainly consists of a high-temperature constant temperature bath,a low-temperature constant temperature bath,a cooling plate,a fogging cup,a fogging glass plate,a measuring meter,a sampler,and accessories.It can complete the sampling,heating,condensation,testing and other testing processes.



　　Applicable standards:



　　DIN75201,ISO6452,ISO17071,SAEJ1756,QB/T2728,BSEN14288,PV3920,PV3015,ES-X83231,NESM0161,D451727,GM9305P,TSM0503G



　　Main parameters:



　　1.Temperature range of high-temperature tank:room temperature-150℃(room temperature-280℃to be purchased separately);



　　2.Temperature control accuracy of high-temperature tank:±0.1℃(150℃);



　　3.Temperature range of low-temperature tank:0-100℃;



　　4.Temperature control accuracy of low-temperature tank:±0.1℃;



　　5.External dimensions of high-temperature groove:670mm(L)x 490mm(W)x 540mm(H);



　　6.External dimensions of low-temperature tank:400mm(L)x 220mm(W)x 520mm(H);



　　7.Net weight of high-temperature tank:32kg(excluding thermal conductivity medium);



　　8.Net weight of low-temperature tank:15kg(excluding thermal conductivity medium);



　　9.Power requirements:AC220V,single-phase,50-60Hz,2000W.
