hundred grid cross scratch tester technical parameters
2024/03/14

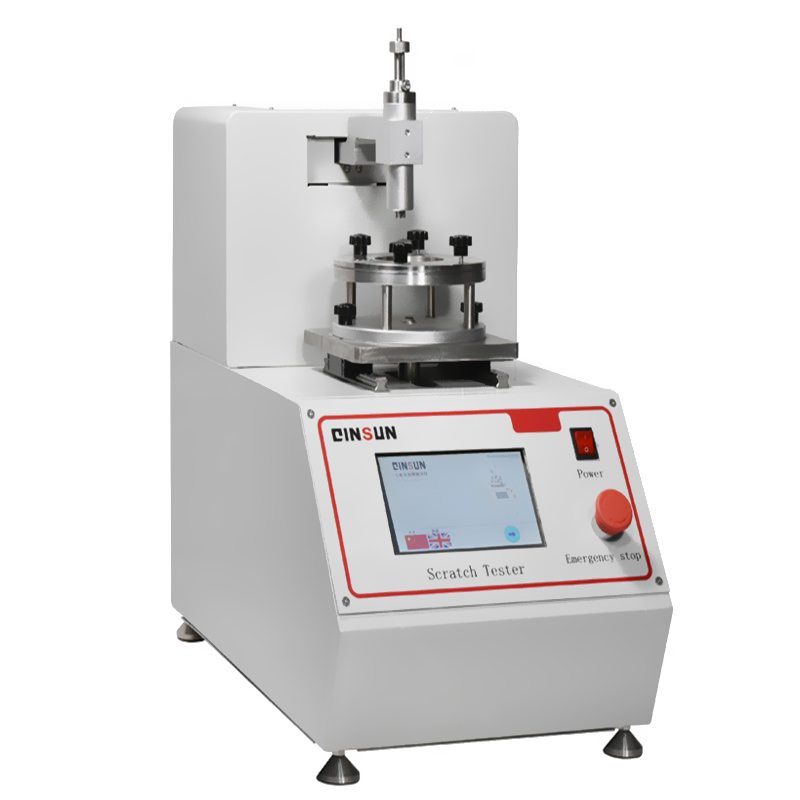

The hundred grid cross scratch tester is used to test the scratch resistance and scratch performance of automotive interior and exterior plastic parts.
Applicable standards:
PV 3952,PV 3974,GMW 14688,VDA621-411,EN ISO 2409,ASTM D3359
![](/en/uploadfile/2024/0314/20240314044744138.jpg)
![](/en/uploadfile/2024/0314/20240314044744138.jpg)
Technical parameters:
Instrument power supply:115/230VAC,50/60Hz(please specify voltage when ordering)
Equipment power:400W
Test piece specification:80×50mm
Sample thickness:0.5-20mm
Standard load range:2-50N(2N carry)
Special load range:1-10N(rounded to 1N)(must be matched with optional accessories)
Scribed path:25 or 40mm
Scratching speed:1m/min or 40mm/s
