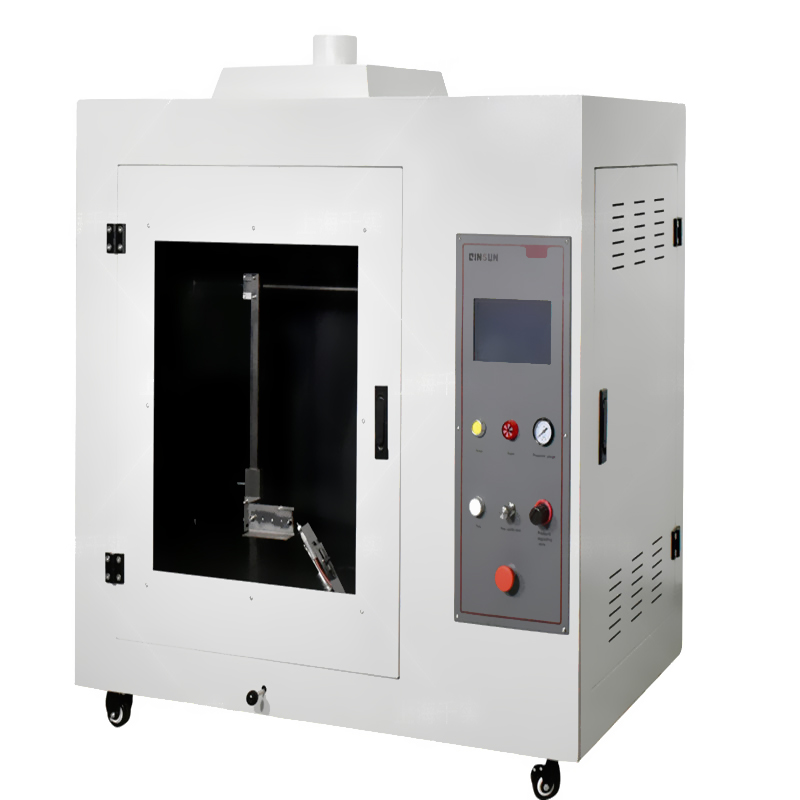

Needle Flame Combustion Tester main parameters
2024/03/19
The needle flame combustion tester is suitable for testing components and parts of electronic and electrical products,household appliances,such as wiring boards,centrifugal switches,and rice cooker sockets.Simulate the small flames generated inside the product under fault conditions,and evaluate the fire hazard using simulation technology.
![](/en/uploadfile/2024/0319/20240319051055265.jpg)
Main parameters:
1.Fuel:Butane gas
2.Flame height:12mm±1mm adjustable
3.Flame temperature:The time to rise from 100℃to 700℃is within 23.5±1 second
4.Timer:adjustable within the range of 0 to 99 minutes and 99 seconds,with adjustable combustion time and recorded combustion duration
![](/en/uploadfile/2024/0319/20240319051055265.jpg)
Reference standard:
IEC884-1"Standard Electrical Accessories Power Load Cabinet"
GB2099.1-2008"Plug and socket outlets for household and similar purposes-Part 1:General requirements"
VDE certification
IEC335-91"Safety of household and similar electrical appliances-Part 1:General requirements"
GB4706.1-2005"Safety of Household and Similar Electrical Appliances,Part 1:General Requirements"
GB5169.5-2008"Fire hazard testing for electrical and electronic products-Test flames-Needle flame test method"
UL1694"Combustion Test Method"
