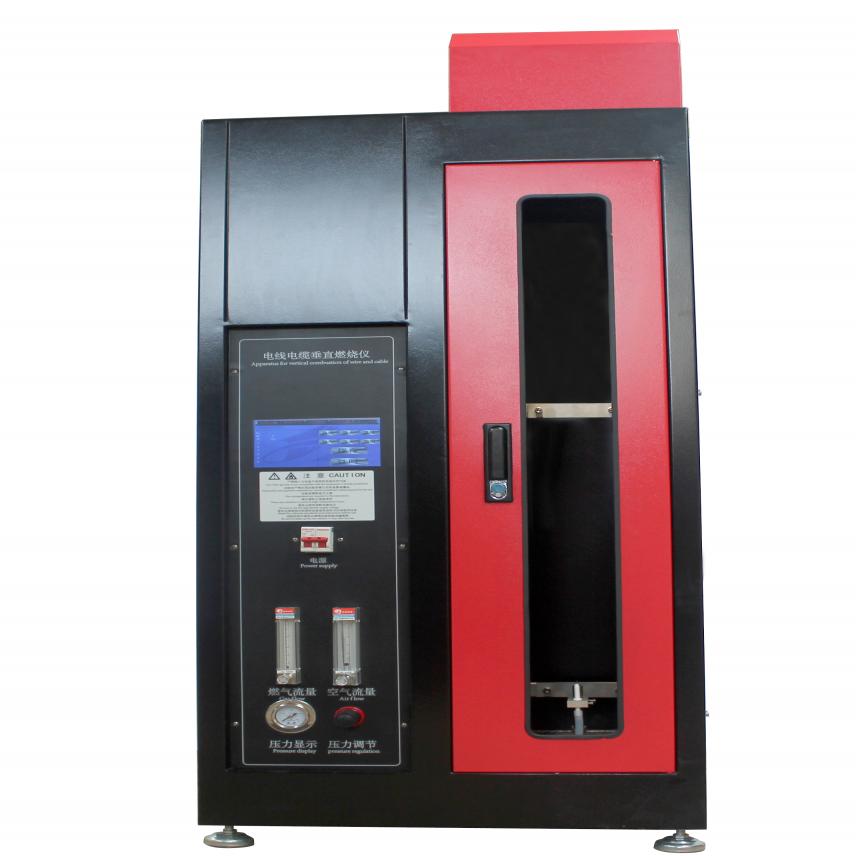

single wire and cable vertical combustion tester main parameters
2024/03/19
Share:
The single wire and cable vertical combustion tester is suitable for the research,production,and quality inspection departments of electrical and electronic products and their components such as lighting equipment,low-voltage appliances,household appliances,machine tool appliances,motors,electric tools,electronic instruments,electrical instruments,electrical connectors,and accessories.It mainly evaluates the combustible performance of a single wire and cable with a conductor diameter greater than 0.8mm or a cross-sectional area not less than 0.5mm2.
Applicable standards:
IEC 60332,GB/T 19666-2005,GB/T 12972,GB/T 13033,MT818,MT386,UL 1581-2006 Section 1060(Vertical and FT1 tests),Section 1061(Cable combustion test),Section 1080(VW-1 combustion test),Section 1100(Horizontal specimen/FT2 combustion test)
Main parameters:
1.Burner:Inner diameterΦ9.5mm±0.5mm
2.Test inclination angle:The 45°style crossbeam can be moved back and forth,and the position of the Bunsen lamp can be adjusted according to the thickness of the style
3.Flame height:adjustable from 20mm±2mm to 190mm±1mm
4.Flame application time:0-999.9s±0.1s adjustable
5.Combustion gas:95%propane gas(liquefied petroleum gas can generally be used instead)
6.Wire and cable length:600±25mm
7.Outer diameter of wires and cables:conductor diameter greater than 0.8mm or cross-sectional area greater than 0.5mm2
8.Test environment:No wind and temperature is(23±10)℃
9.Standard power of combustion nozzle:1KW
10.Power supply voltage:220V/50Hz
11.Gas flow rate:0-1L/min
12.Air flow rate:1.5-15L/min
