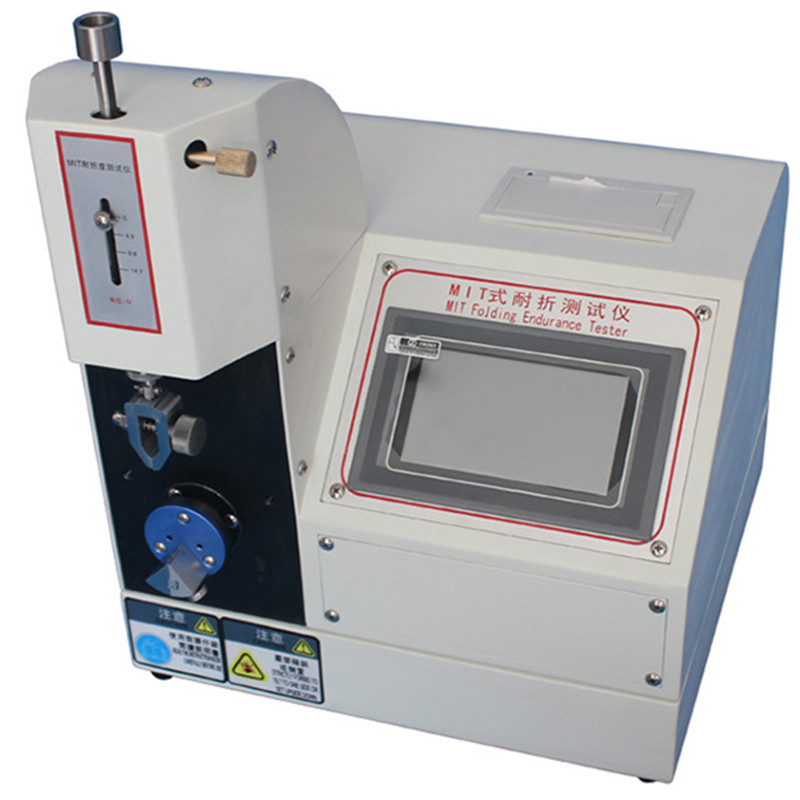

Paper folding resistance tester parameters

　　The paper folding resistance tester is used to measure the number of times and degree of folding of paper. It is suitable for the ability of box board paper, kraft paper, cardboard, corrugated paper, gray board paper and other paper to resist folding fatigue. It is also suitable for measuring the folding fatigue strength of other sheet materials with a thickness of less than 1mm (such as copper foil in the electronics industry). By measuring, the requirements for controlling the physical properties of materials are achieved to meet the practical application needs of the product.

　　Compliant with standards:

　　ISO 5626, GB2679 · 5

　　Main parameters:

　　1. Measurement range: 0-99999 times

　　2. Folding angle: 0-142 ° infinitely adjustable

　　3. Folding speed: adjustable from 10 times/min to 200 times/min

　　4. Spring tension: 4.91-14.72N

　　5. Clamp distance: 9.5mm

　　6. Folding clamp: not more than 0.343N

　　7. Sample length: ≥ 140mm

　　8. Folding width: 19 ± 1mm

　　9. Folding radius: 0.38 ± 2mm

　　10. Folding mouth gap distance: 0.25mm/0.5mm/0.75mm/1.0mm
