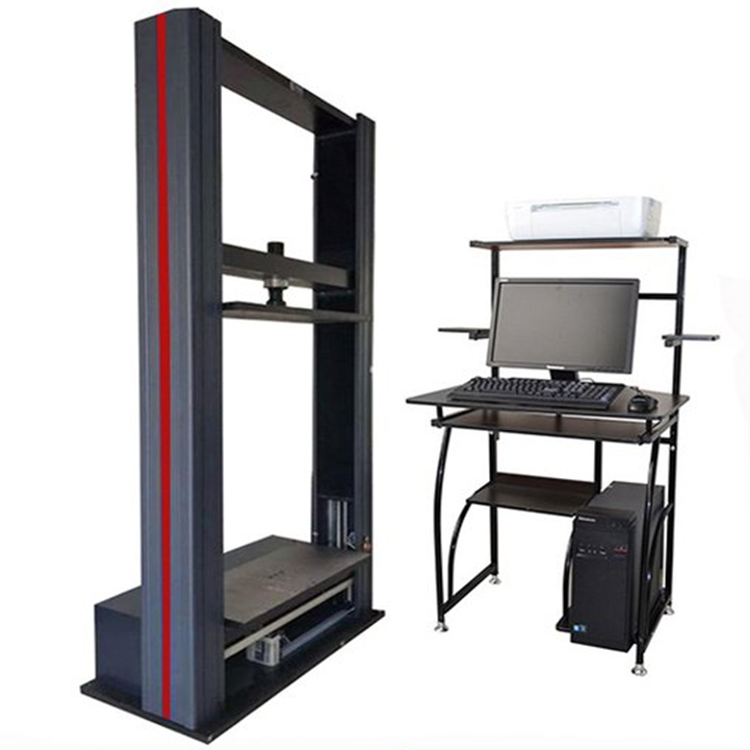

Packaging box compressive strength tester parameters

　　The packaging box compressive strength tester is used to determine the compressive capacity of cardboard boxes and can perform pressure holding stacking tests. It is suitable for the pressure resistance, deformation, and stacking tests of corrugated cardboard boxes, honeycomb board boxes, and other packaging components. It also takes into account the compressive tests of plastic drums (edible oil, mineral water), paper drums, paper boxes, paper cans, container barrels (IBC barrels) and other containers. The test results can be an important reference for the height of finished packaging boxes stacked in factories or an important basis for designing packaging boxes.

　　Design standards:

　　TAPPI-T804, JIS-20212, GB4857.3.4, ASTM-D642, QB/T1048, BS EN ISO12048, GB/T4857.16, GB/T8167, GB/T8168, GB/T4857.3, GB/T4857.4

　　Main parameters:

　　1. Capacity selection: 500kg, 1000kg, 2000KG, 3000KG, 5000KG sensors

　　2. Test speed: (10 ± 3) mm/min

　　3. Load decomposition degree: 1/100000

　　4. Load accuracy: within ± 0.5%

　　5. Unit switching: Kgf, Ibf, N

　　6. Compressed space size: 200 * 200, 300 * 300, 400 * 400, 500 * 500, 600 * 600, 800 * 800, 1000 * 1000, 1200 * 1200, 1500 * 1500MM

　　7. Control method: Panel control, LED LCD screen display

　　Design standards:

　　TAPPI-T804, JIS-20212, GB4857.3.4, ASTM-D642, QB/T1048, BS EN ISO12048, GB/T4857.16, GB/T8167, GB/T8168, GB/T4857.3, GB/T4857.4

　　Main parameters:

　　1. Capacity selection: 500kg, 1000kg, 2000KG, 3000KG, 5000KG sensors

　　2. Test speed: (10 ± 3) mm/min

　　3. Load decomposition degree: 1/100000

　　4. Load accuracy: within ± 0.5%

　　5. Unit switching: Kgf, Ibf, N

　　6. Compressed space size: 200 * 200, 300 * 300, 400 * 400, 500 * 500, 600 * 600, 800 * 800, 1000 * 1000, 1200 * 1200, 1500 * 1500MM

　　7. Control method: Panel control, LED LCD screen display
