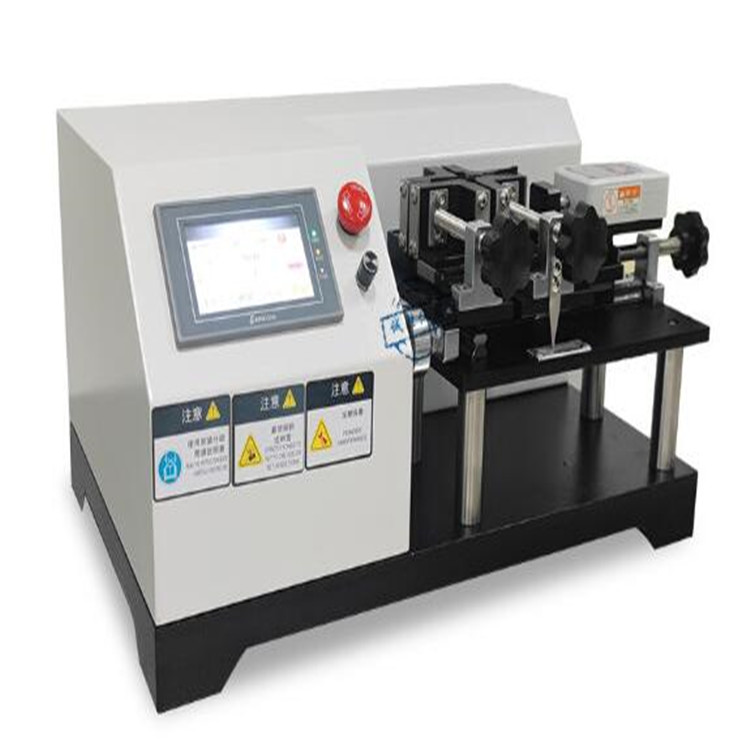

Leather rubbing resistance tester parameters

　　The leather rubbing resistance tester is used to test the rubbing resistance of simulated materials such as leather, fabrics, and coated fabrics.

　　Reference standard:

　　GB/T 8948-2008, JIS L1096, ASO M403QB/1333-2018, QB/1618-2018, QB/T 5246-2018 and other standards

　　Technical parameters:

　　1. Sample load: 9.8N

　　2. Test speed: 120r/min

　　3. Test stroke: 0-50mm (adjustable)

　　4. Fixture width: 45mm

　　5. Maximum distance between fixtures: 40mm

　　6. Sample size: 120 x 30mm

　　7. Volume: 65x51x30cm

　　8. Controller: Color LCD display, speed display, one click testing function

　　9. Count range: 0-999999

　　10. Power: 400W

　　11. Weight: 45kg

　　12. Power supply: 220V 50Hz
