Whole shoe peeling strength tester standards

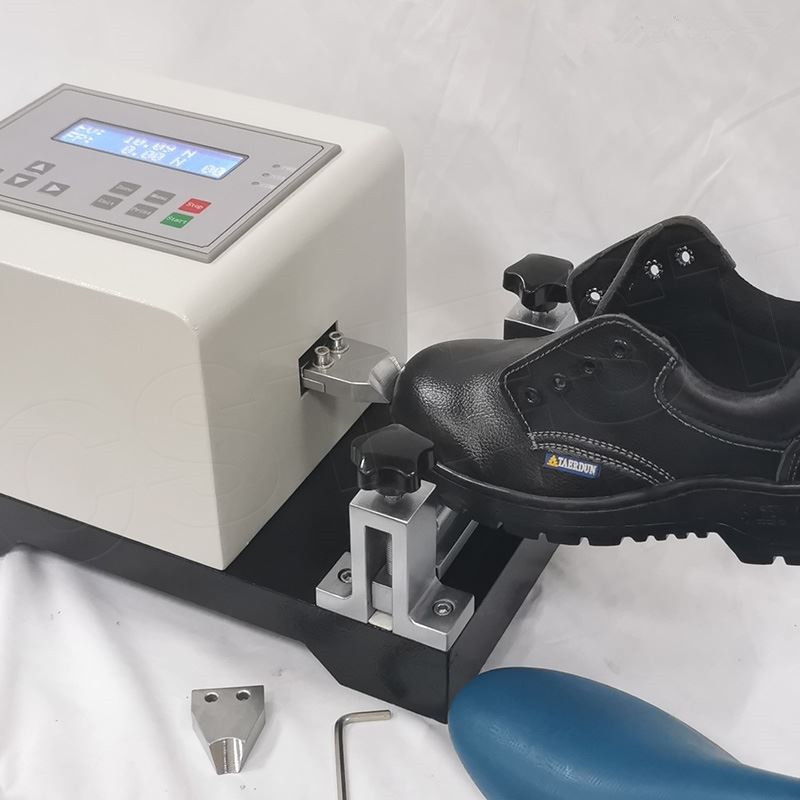

　　The whole shoe peeling strength tester is suitable for testing the peeling strength between the sole and upper of finished shoes, and testing the peeling strength value between the upper surface and the sole of men's and women's leather shoes or similar finished shoes.

　　Applicable standards:

　　GB/T 3903.3-2011 Footwear Test Methods for Whole Shoe Peel Strength

　　QB/T 4329-2012

　　Main parameters:

　　Large peeling force: 1000N

　　Stripping blade width: 20 ± 0.2MM and 10 ± 0.1MM

　　Stripping blade downward speed: 20 soil, 2MM/MIN, adjustable rising and falling speeds

　　Distance between positioning rod and pull rod: 50-70 mm adjustable

　　Dial gauge: 0.001~10 MM, accuracy: 0.001

　　Average lifting range: 40 MM

　　Volume (approximately): 560x320x750MM

　　Power supply: AC220V, 50HZ

　　Weight (approximately): 45 KG

　　Applicable standards:

　　GB/T 3903.3-2011 Footwear Test Methods for Whole Shoe Peel Strength

　　QB/T 4329-2012

　　Main parameters:

　　Large peeling force: 1000N

　　Stripping blade width: 20 ± 0.2MM and 10 ± 0.1MM

　　Stripping blade downward speed: 20 soil, 2MM/MIN, adjustable rising and falling speeds

　　Distance between positioning rod and pull rod: 50-70 mm adjustable

　　Dial gauge: 0.001~10 MM, accuracy: 0.001

　　Average lifting range: 40 MM

　　Volume (approximately): 560x320x750MM

　　Power supply: AC220V, 50HZ

　　Weight (approximately): 45 KG

　　The whole shoe peeling strength tester is suitable for testing the peeling strength between the sole and upper of finished shoes, and testing the peeling strength value between the upper surface and the sole of men's and women's leather shoes or similar finished shoes.
