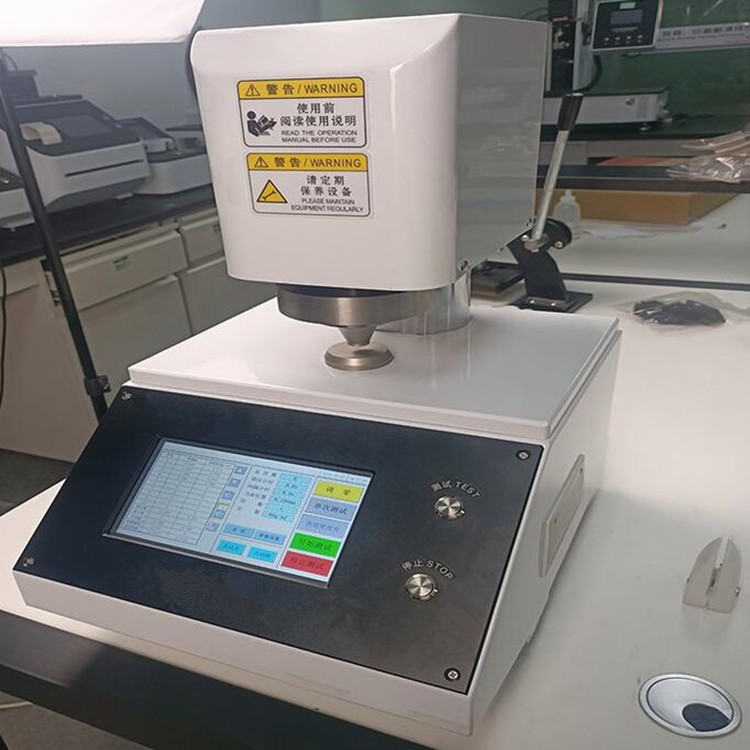

Paper plastic film thickness tester standards

　　The paper plastic film thickness tester is suitable for measuring the thickness of various types of paper (including toilet paper), cardboard, corrugated cardboard, tobacco flakes, plastic films, and other sheet-like materials.

　　Compliant with standards:

　　ISO534, GB/T451.3, GBT24328.2, QB/T1055

　　Technical features:

　　Chinese touch screen display, user-friendly human-machine interface operation, fully automatic testing, with test data statistics and processing function, and micro printer output.

　　Technical parameters:

　　Measurement range: (0-5) mm (for measuring paper and thin sheets), (0-20) mm (for measuring cardboard)

　　Accuracy: ± 0.001mm or ± 0.5%

　　Planarity of two measuring surfaces: ≤ 0.001mm

　　Test contact area: (2 ± 0.05) cm ²、 (10 ± 0.2) cm ²

　　Contact pressure (can be set in any range): (0.5-500) kPa, (0.1-100) kPa

　　Test speed: ≤ 3mm/s

　　Weight: approximately 20kg

　　Power supply: AC220V, 50Hz

　　External dimensions: 330 x 340 x 350mm
