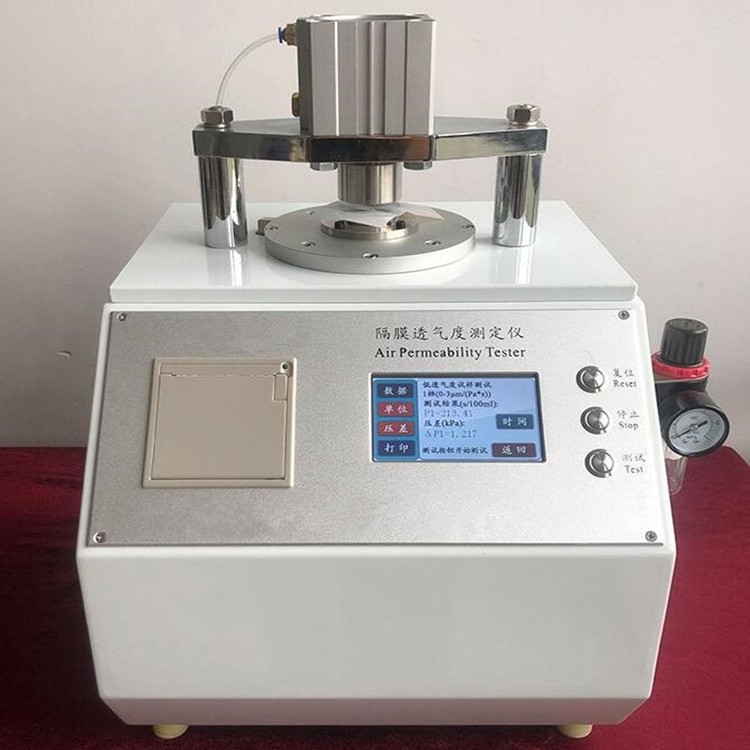

Lithium battery separator permeability tester standards

　　The lithium battery separator permeability tester is suitable for measuring the gas permeability and other indicators of materials such as battery separators, exchange membranes, carbon paper, paper, textiles, etc.

　　Execution standards:

　　ISO 5636.5, ASTM D726, TAPPI T460, GB/T 36363-2018

　　Technical indicators:

　　Test scope: 15~ ­ 15000s/100ml (standard configuration) Other ranges are optional.

　　Resolution: 0.1/s100ml

　　Sample quantity: 1 piece (standard)

　　Pressure range: 20kPa, (5kPa, 10kPa optional)

　　Pressure accuracy: 0.01kPa

　　Test area: 1.0 square inches (0.25 square inches, 0.1 square inches optional)

　　Sample thickness: ≤ 5mm

　　Test gas: clean air, etc. (to be provided by the user)

　　Gas source pressure: 0.3MPa, ­ 1.0MPa

　　Interface size: Ф 6mm

　　Power supply: AC 220V 50Hz

　　Execution standards:

　　ISO 5636.5, ASTM D726, TAPPI T460, GB/T 36363-2018

　　Technical indicators:

　　Test scope: 15~ ­ 15000s/100ml (standard configuration) Other ranges are optional.

　　Resolution: 0.1/s100ml

　　Sample quantity: 1 piece (standard)

　　Pressure range: 20kPa, (5kPa, 10kPa optional)

　　Pressure accuracy: 0.01kPa

　　Test area: 1.0 square inches (0.25 square inches, 0.1 square inches optional)

　　Sample thickness: ≤ 5mm

　　Test gas: clean air, etc. (to be provided by the user)

　　Gas source pressure: 0.3MPa, ­ 1.0MPa

　　Interface size: Ф 6mm

　　Power supply: AC 220V 50Hz
