Intelligent compression strength tester standards

2024/04/18

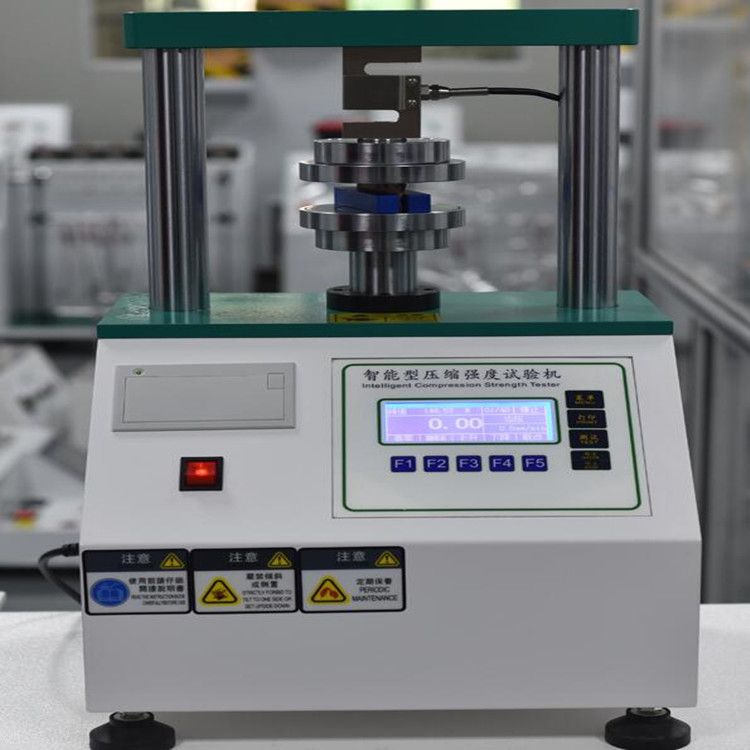

　　The intelligent compression strength tester, also known as the computer measurement and control compression tester, cardboard compression tester, electronic compression tester, edge pressure tester, and ring pressure tester, is the basic instrument for testing the compressive strength performance of cardboard/paper (i.e. paper packaging testing instrument). It is equipped with various fixture accessories to test the ring pressure strength of the original paper, the flat pressure strength of the cardboard, edge pressure strength, bonding strength, and other tests, so that paper production enterprises can control production costs and improve product quality.

　　Execution standards:

　　GB/T 2679.8-1995 "Paper and Board-Determination of Ring Compression Strength"

　　GB/T 6546-1998 "Determination of edge compressive strength of corrugated paper boards"

　　GB/T 6548-1998 "Determination of Adhesive Strength of Corrugated Paper Board"

　　GB/T 2679.6-1996 "Determination of Flat Compression Strength of Corrugated Base Paper"

　　GB/T 22874 "Determination of Flat Compression Strength of Single sided and Single Corrugated Paper Board"

　　Main parameters:

　　Measurement range: ≤ 2000N

　　Unit switching: N, kN, kgf, gf, lbf

　　Test speed: 12.5 ± 2.5mm/min (or adjustable according to customer requirements)

　　Pressure plate size: 100X 100mm (can be customized according to customer requirements)

　　Distance between upper and lower pressure plates: 80mm (can be customized according to customer requirements)

　　Volume (approximately): 350X 400X 550mm

　　Power supply: AC220V+10% 2A 50Hz

　　Weight (approximately): 65kg
