Standards:

Applications:

Product Information:

Test purpose:

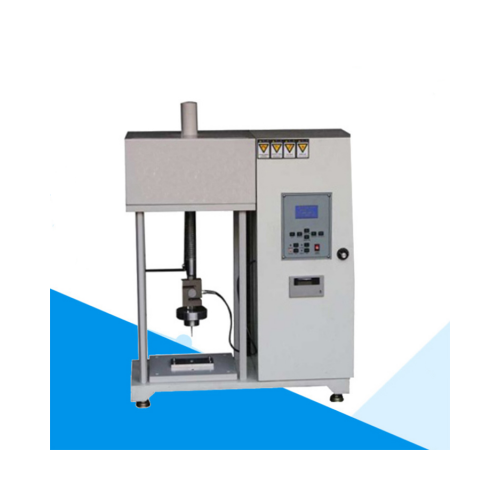

Measure the compression resistance of the shoe head cover and the puncture resistance of the steel plate to prevent the operator from accidental injury when wearing in the workplace due to the insufficient safety performance of the shoe.

The testing machine has the function of speed regulation, the test speed can be arbitrarily adjusted according to customer requirements, and has the function of kg, N, lb three units can be arbitrarily switched, and with a micro printer, the test results can be printed out.

Reference standard:

BS, EN-344, ANSI-Z41, ISO-20344, LD50, GB

Technical parameters:

Pressure load cell

Compression force （EN）15±0.1KN

（ANSI）1000±50 —— 10000±50lbs

Compression speed stepless speed regulation

Unit kg, N, and LB can be switched

Pressure shows resolution 1/10000

Maximum load 500kg

Other features include upper limit protection and peak retention, which can automatically shut down

Volume 712×330×828mm

Weight 115kg
